Description
NZXT C1000 Gold ATX 3.1 PSU is ready to fuel the demands of RTX 40 Series graphics card. Its robust design and modularity make it ideal for users looking to build a clean, efficient system for gaming, content creation, and demanding computing tasks
Features:

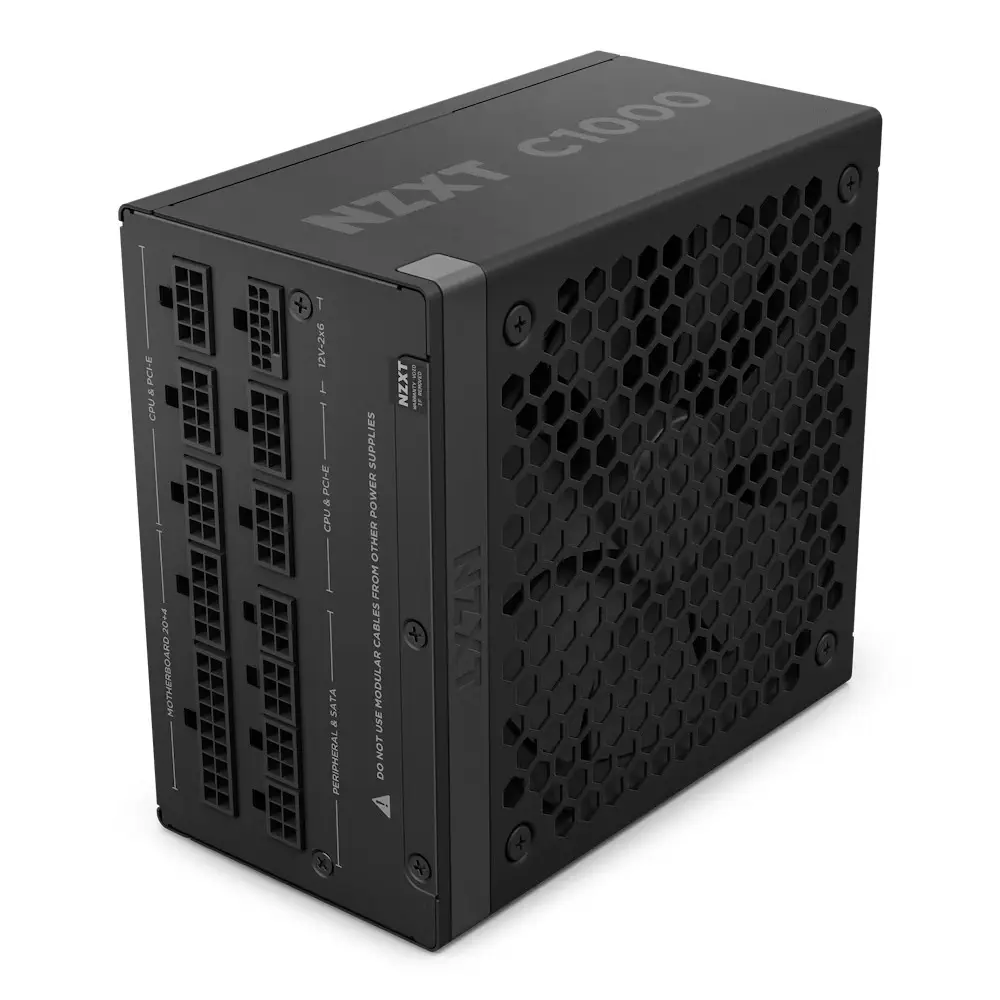

C1000 Gold ATX 3.1
1000 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2×6 connector pumps up to 600 watts to NVIDIA GeForce RTX 40 Series graphics cards.
- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
- Compact form factor frees up valuable room for cable management and more case airflow.
- Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
Specification:
| Model Name | SMPS NZXT C1000 80+ GOLD ATX 3.1 BLACK |
| Model Part Number | PA-0G2BB-UK |
| Output Connectors | |
| 24-pin ATX Power Cable | 1 |
| 4+4-pin CPU Power Cable | 1 |
| 8-pin CPU Power Cable | 1 |
| 6+2-pin PCIe Power Cable | 3 |
| 16-pin (12+4) 12V-2×6 PCIe Cable | 1 |
| SATA Cable | 12 |
| Peripherals Cable | 4 |
| Cable Specs | |
| 24-pin ATX Power Cable | 600mm with nylon sleeving |
| 4+4-pin CPU Power Cable | 700mm with nylon sleeving |
| 8-pin CPU Power Cable | 700mm with nylon sleeving |
| 6+2-pin PCIe Power Cable | 650mm with nylon sleeving |
| 16-pin (12+4) 12V-2×6 PCIe Cable | 650mm with nylon sleeving |
| SATA Cable | 500 + 150mm |
| Peripherals Cable | 500 + 150mm |
| AC Input Rating | |
| 100 – 240Vac | 13A 50Hz-60Hz |
| 200 – 240Vac | 6.5A 50Hz-60Hz (China & South Korea) |
| DC Output Rating | |
| 3.3V / +5V | 22A (120W) |
| 12V | 83.3A (1000W) |
| 5Vsb | 3A (15W) |
| Total | 1000W |
| Energy Efficiency | |
| Rating | 80 Plus Gold |
| 10% loading | 85.5% @115Vac |
| 20% loading | 89.7% @115Vac |
| 50% loading | 91.9% @115Vac |
| 100% loading | 89.3% @115Vac |
| Electrical Features | |
| PF Correction | Active @0.99 |
| Protections | OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) / |
| Fan Specs | |
| Dimensions | 135 x 135 x 25 mm |
| Speed | 2300 ± 10% RPM |
| Airflow | 93.02 CFM (Min.) |
| Noise | 44.5 dBA max |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Operation | |
| MTBF | 100,000 hours |
| Temperature | 0 – 50 °C |
| Dimensions | |
| Width | 150 mm |
| Height | 86 mm |
| Depth | 160 mm |
| General | |
| Material(s) | Steel, PCB and Plastic |
| Compliance Standard | ATX12V v3.1 / EPS12V v2.92 |
| Regulation & Certification | FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
| Warranty | 10 Years |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
