Description

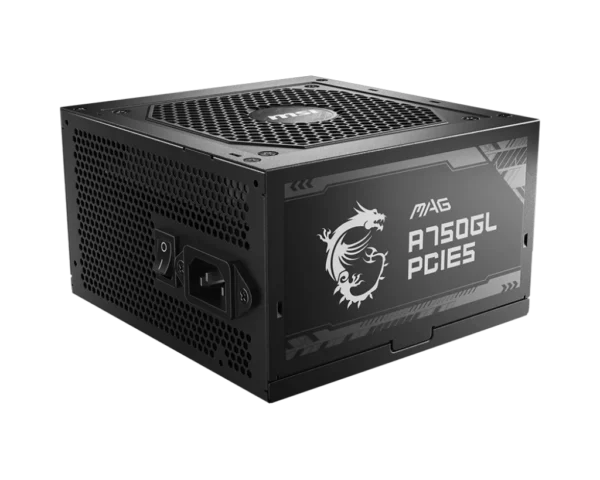

MAG A750GL PCIE 5.1 is a high-performance 750 Watt ATX 3.1 ready power supply. It features an 80 Plus Gold certification, full modular design, industrial-grade protection, 120mm fluid dynamic bearing fan. It is ideal for NVIDIA GeForce RTX 40 Series GPUs
Features:
MAG A750GL PCIE5.1
- ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
- Supports NVIDIA GeForce RTX 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
Specification:
| Model | MAG A750GL PCIE5.1 ATX 3.1 |
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |
| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 750W |
| Power Excursion | 1500W (*up to 200% of the PSU’s rated power for 100μs) |
| Input Frequency Range | 47-63Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (450W) |
| PCI-E (6+2 pin) | 3 |
| SATA (15 pin) | 8 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
| Warranty | 7 Years |
| Note | *** Images are for Representation purposes only
*** Features, Price, Specifications are subject to change without notice. |
