Description
Features:

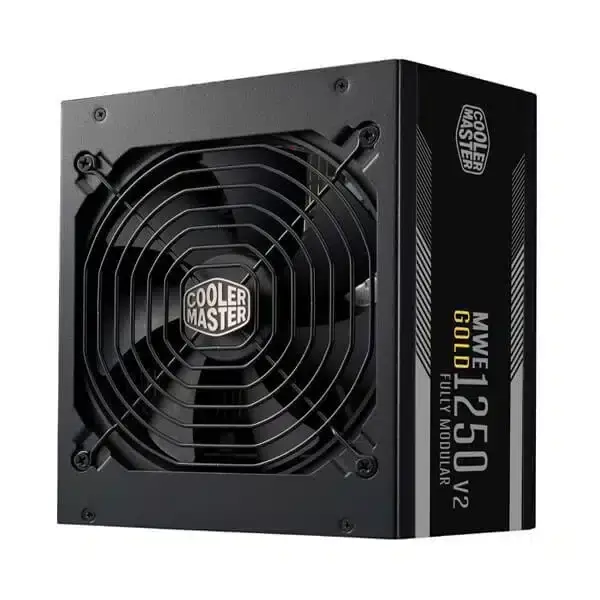

MWE Gold 1250 -V2 brings optimal performance for a classic configuration. The MWE Gold 1250 -V2 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.
- Highly Efficient Performance : The 80 PLUS Gold certification
guarantees a minimum efficiency of 90%. - 140mm FDB Fan : MWE Gold 1250 – V2 has delivered to a premium
high air flow and long life bearing fan, offering more effective cooling
performance. - Fully support ATX3.0 : 12VHPWR connector with a compact 12+4 pin
cable can pump up to 600W of power to a GPU via a single cable. - Fully Modular Cabling : MWE Gold – V2 comes with fully modular flat,
black cables for increased airflow. - 10 Year Warranty : MWE Gold 1250 – V2 model comes with a 10 year
factory warranty from purchase date.
Specification:
| Product Name | MWE Gold 1250 – V2 (Fully Modular)ATX3.0 |
| Item Code | MPE-C501-AFCAG-3 |
| ATX Version | ATX Rev. 3.0 |
| PFC | Active PFC |
| Input Voltage | 100 – 240V |
| Input Current | 15 – 7A |
| Input Frequency | 50 – 60Hz |
| Dimensions (L x W x H) | 180 x 150 x 86mm |
| Fan Size | 140mm |
| Fan Bearing | FDB |
| Efficiency | ≥ 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0 – 50°C |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | ≥ 16ms at 100% Load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP /Inrush Protection |
| Regulatory | TUV,cTUVus,CE,FCC,BSMI,CCC, S-MARK,EAC,RCM,UKCA,BIS |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 3 |
| 12VHPWR | 1 |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
