Description

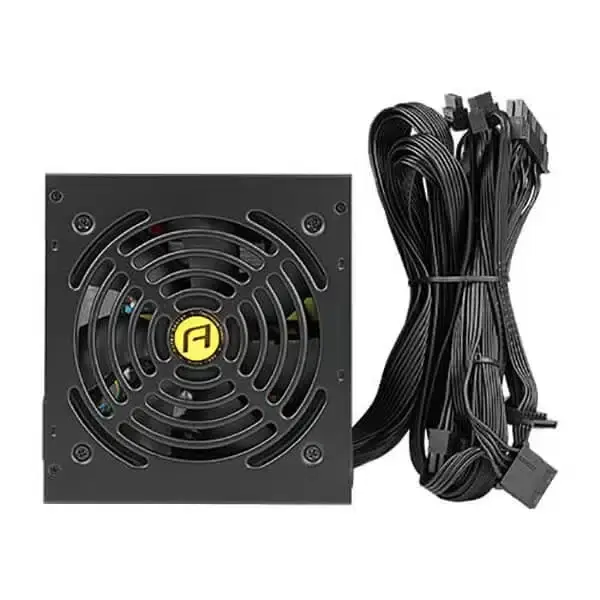

Antec CSK Series 550 Watt 80 Plus Bronze SMPS With Active PFC Featuring 7 Sata Slots, 2x 6+2 Pin PCIe Connectors, 3x PATA Connectors(1x Floppy Connector Included).
Specifications
| Model | CSK550 Bronze |
| Type | ATX 12V 2.31 |
| Dimension | 140(L) x 150(W) x 86(H) |
| Input Voltage | 100 ~ 240 VAC |
| Input Current | 10A ~ 5A |
| Input Frequency Range | 50Hz ~ 60Hz |
| PFC | Active PFC |
| Power Good Signal | 100 ~ 500ms |
| Efficiency | 88% Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/NLO/OTP |
| Output Capacity | 550W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/CCC/FCC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Bronze |
| Connector | 1 x MB 24(20+4) Pin |
| 1 x 8(4+4) Pin EPS 12V | |
| 2 x 8(6+2) Pin PCI-E | |
| 7 x SATA | |
| 2 x Molex | |
| 1 x FDD | |
| Net Weight | 1.53 Kgs |
| Gross Weight | 1.71 Kgs |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifcations are subject to change without notice. |
